HITBOX MIG250 mig welder

The HITBOX welding machine is easy to use and perfectly suited to both experienced users and beginner. You can carry out a lotsof welding jobs, like automoive, metalworking, house repairs or more routine work. Whether you are repairing aluminium bike frames or working on steel sculptures, there is a HITBOX welder for the job and a HITBOX for you!

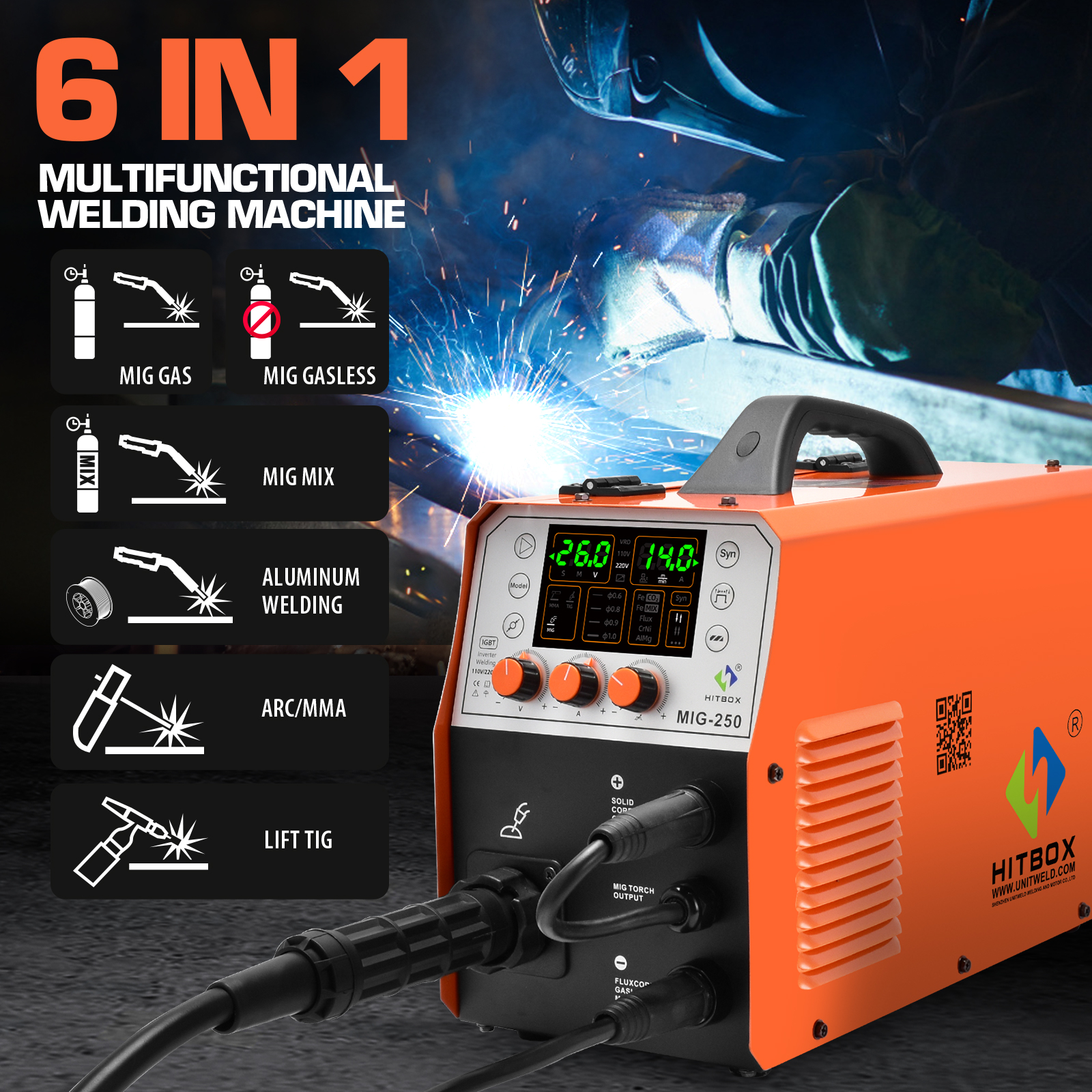

Welding functions: Support for MIG gas, MIG mix, Flux cored/MIG gasless, Lift TIG, MMA.

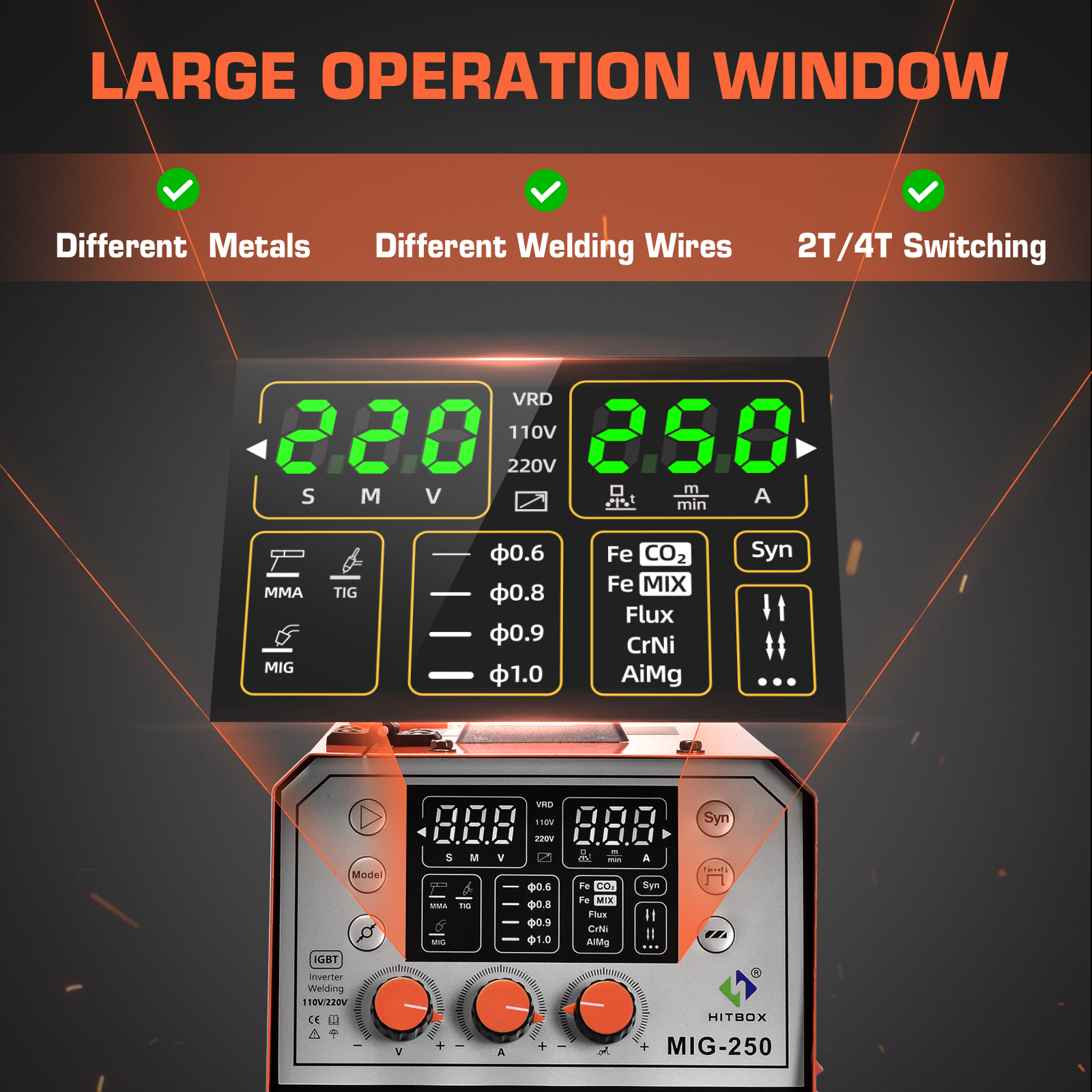

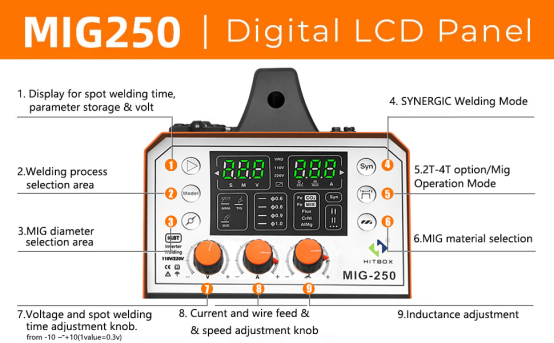

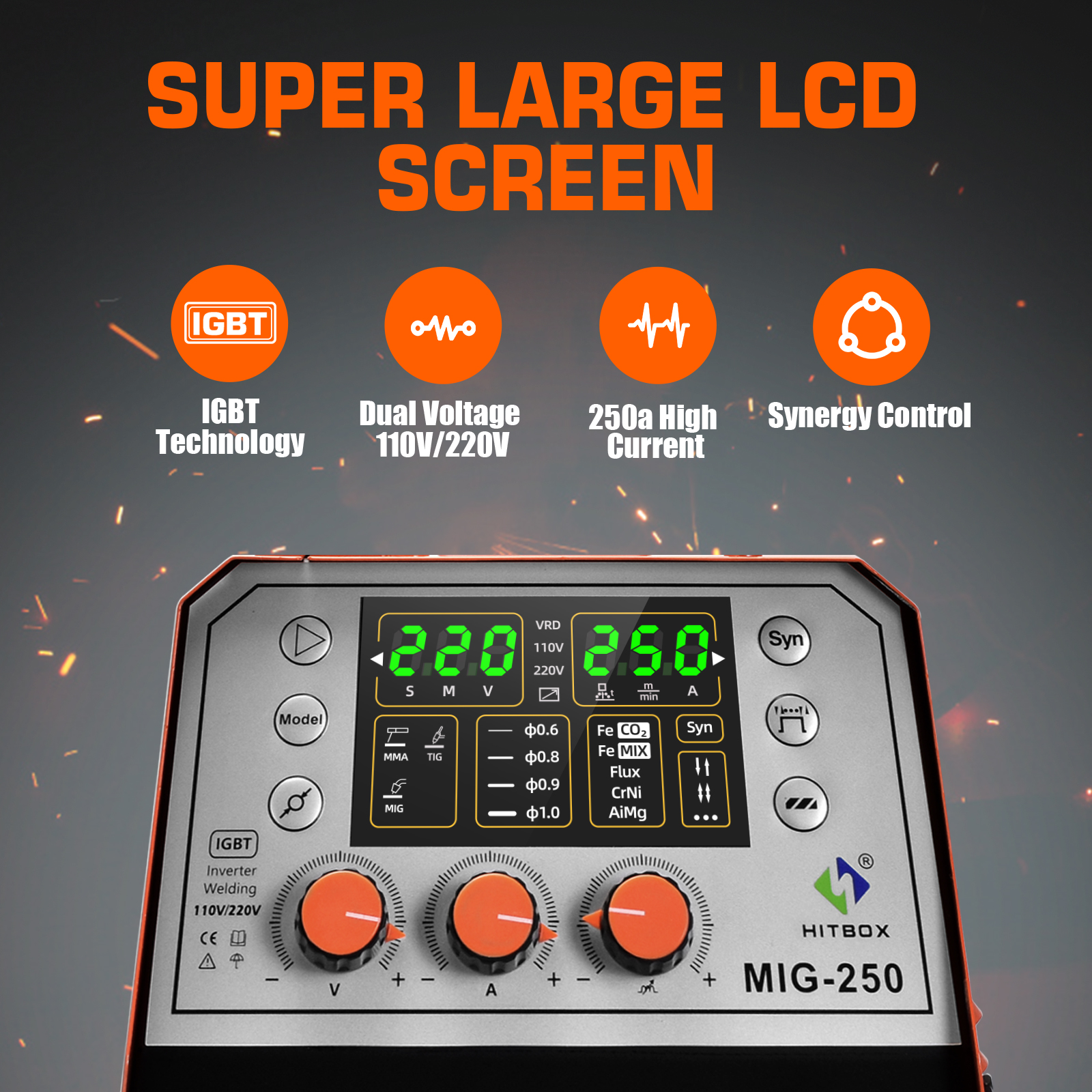

Clear display: The new digital LED panel display shows every detail of the weld clearly.

Easy adjustment: easy switching of welding modes and adjustment of welding parameters.

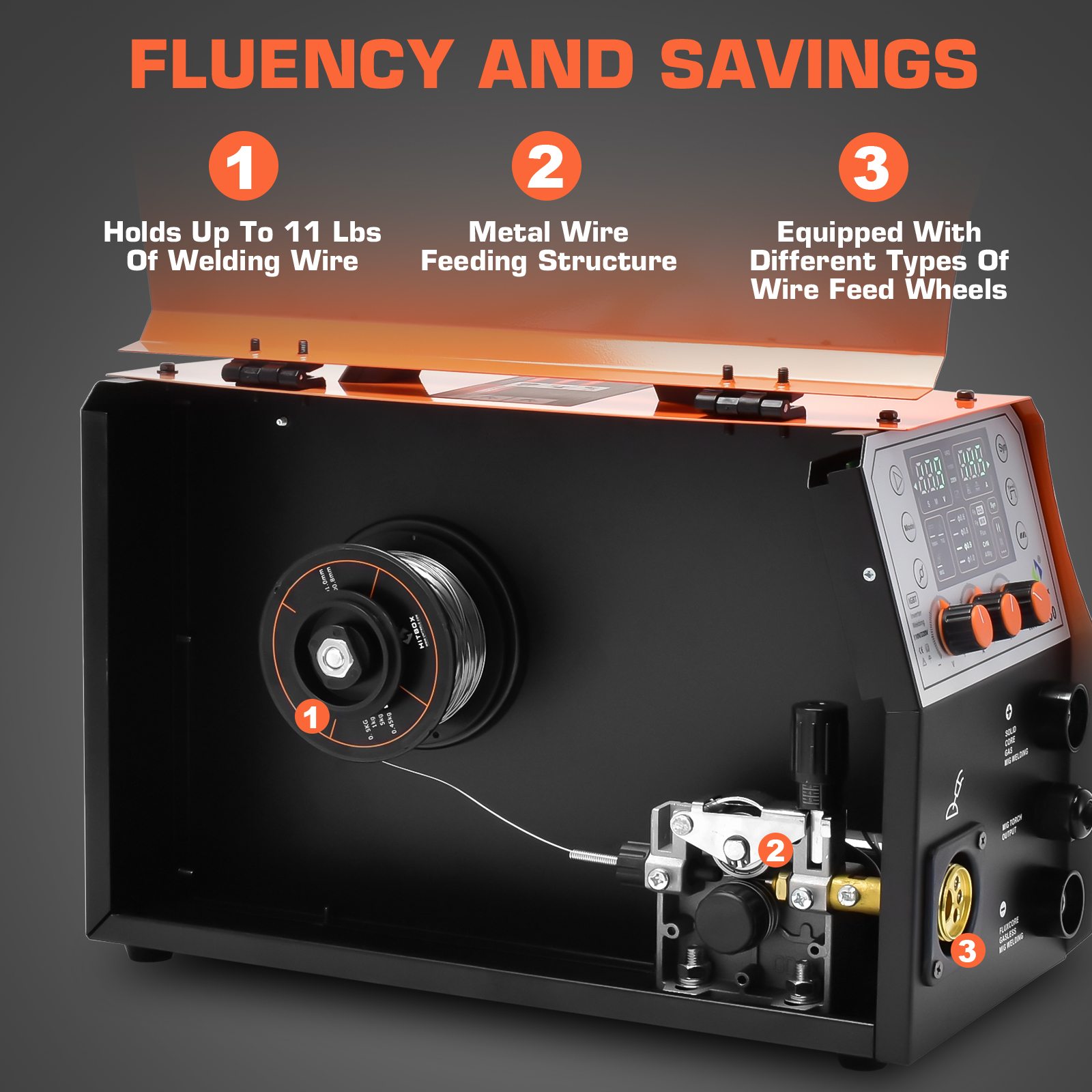

Automatic wire feed function: quickly feeds the wire out of the gun, even to inaccessible interiors.

Inductance adjustment: adjusts the softness of the arc, reduces spatter/deepens the fusion pool.

Multiple upgrade functions: 2T/4T welding mode, inductance adjustment, voltage adjustment

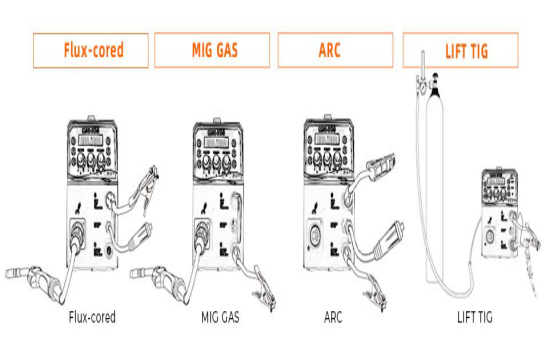

About mig welding

MAG welding: Connect the ground clip to the negative terminal.

MIG gasless: connects the ground clamp to the positive terminal.

Flux wire .035"; Aluminum Wire .035"/.045"(Gasless MIG)

Selection Wire Diameters (Solid Wire .023"/.030"/.035")

Note: The MIG function does not display the current, only the wire feed speed(0-14m/min)

About Lift TIG welding

Connect the ground clip to the positive terminal

Connect the WP-17V tig torch to the negative terminal

Application of Tungsten electrodes diameter:1/8”,3/32",3/16",1/16",5/32"

Recommend using tungsten needles within a diameter of 3.2mm for arc start.

Note: WP-17V torch not included,

About MMA welding

Connect the ground clip to the negative terminal

Connect the electrode holder to the positive terminal

Ideal performance for most 6010, 6011, 6013 and 7018 rods. electrodes up to 5/32"
